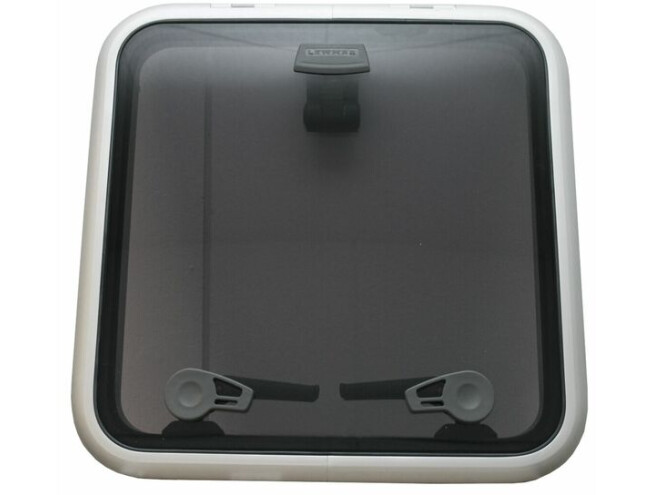

The Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.
• Outside handles allow the hatch to be opened from on deck if it is not locked
• Low profile hatches open up to 180° (round hatches open to 170°)
• Friction levers hold the lid open in any position up to 95°
• Anodised aluminium frame for corrosion resistance
• Curved upper frame profile for strength as well as modern styling

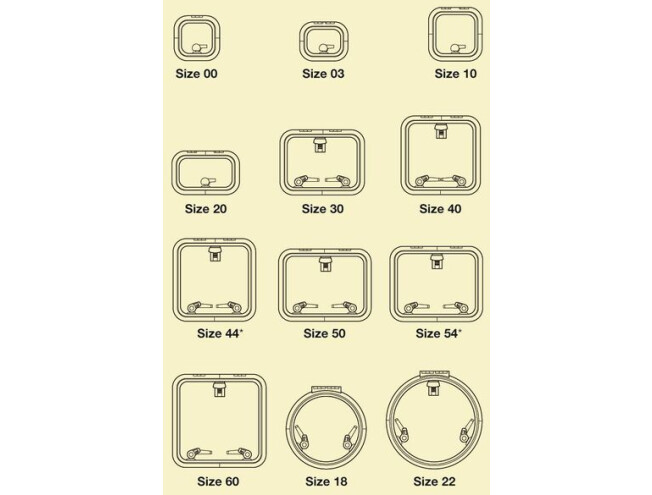

• Available in Round and D-Hatch configuration
• Full range of spare parts available
Mounting Instructions:
• Fit to a flat surface with a maximum tolerance of +/- 1mm.
• Fastening size at hinge section use (M6 / 1/4").
• Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Specifications:
Support System: Self Supporting
Lower Frame (mm): 15
Acrylic Colour: Smoke Grey
Hatch Weight (kg): 4,8
Acrylic Window Thickness (mm): 8
Length X (mm): 512
Width Y (mm): 512
Height Z (mm): 25
Radii R (mm): 72.5
Cut-Out Length X1 (mm): 442
Cut-Out Width Y1 (mm): 442
Cut-Out Radii R1 (mm): 42,5
