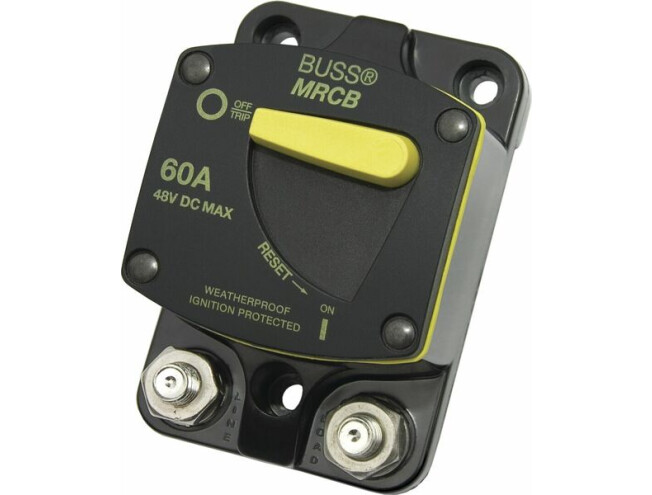

187-SERIES CIRCUIT BREAKER - SURFACE MOUNT 60A
• Combines switching and circuit protection into a single device
• Clear, single lever operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Large Clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 M8 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected - Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements
SPECIFICATIONS
Amperage: 60A
Maximum Voltage: 48V DC
Mounting: Surface Mount
Circuit Breaker Type: Thermally responsive Bi-metal blade
Terminal Stud Torque: 75 in-lb (8.47 Nm)
Interrupt Capacity: 5000A @ 12V | 3000A @ 24V | 1500A @ 42V
Minimum Operating Temperature: -40° C
Maximum Operating Temperature: 85° C
Case Material: Thermoset Polyester
Circuit Breaker Class: Type III - switchable/manual reset - trip free
Mounting Hole: Accept #10 (M5) Screw
Terminal Stud Size: 5/16" – 18
Weight: 0.58lb (0.26 kg)
